El Castillo (Temple of Kukulcán), Chichén Itzá

Overview

El Castillo — “the Castle” in Spanish, also known as the Temple of Kukulcán — is the great step-pyramid at the center of Chichén Itzá, a pre-Columbian Maya city on Mexico’s Yucatán Peninsula. Built to honor Kukulcán, the feathered-serpent deity shared across Mesoamerican cultures (known to the Aztec as Quetzalcoatl), it rises roughly 24 meters to its temple doorway and about 30 meters including the temple structure on top, on a square base about 55 meters to a side. Four stairways of 91 steps climb each face of the pyramid to a single temple platform at the summit; add the platform as a final step and each stairway totals 365 — one day for every day of the Maya solar year. Chichén Itzá was one of the largest and most powerful cities of the Yucatán during the Terminal Classic period, and El Castillo was inscribed by UNESCO in 1988 as the centerpiece of the World Heritage Site “Pre-Hispanic City of Chichén-Itzá.”

The Structure

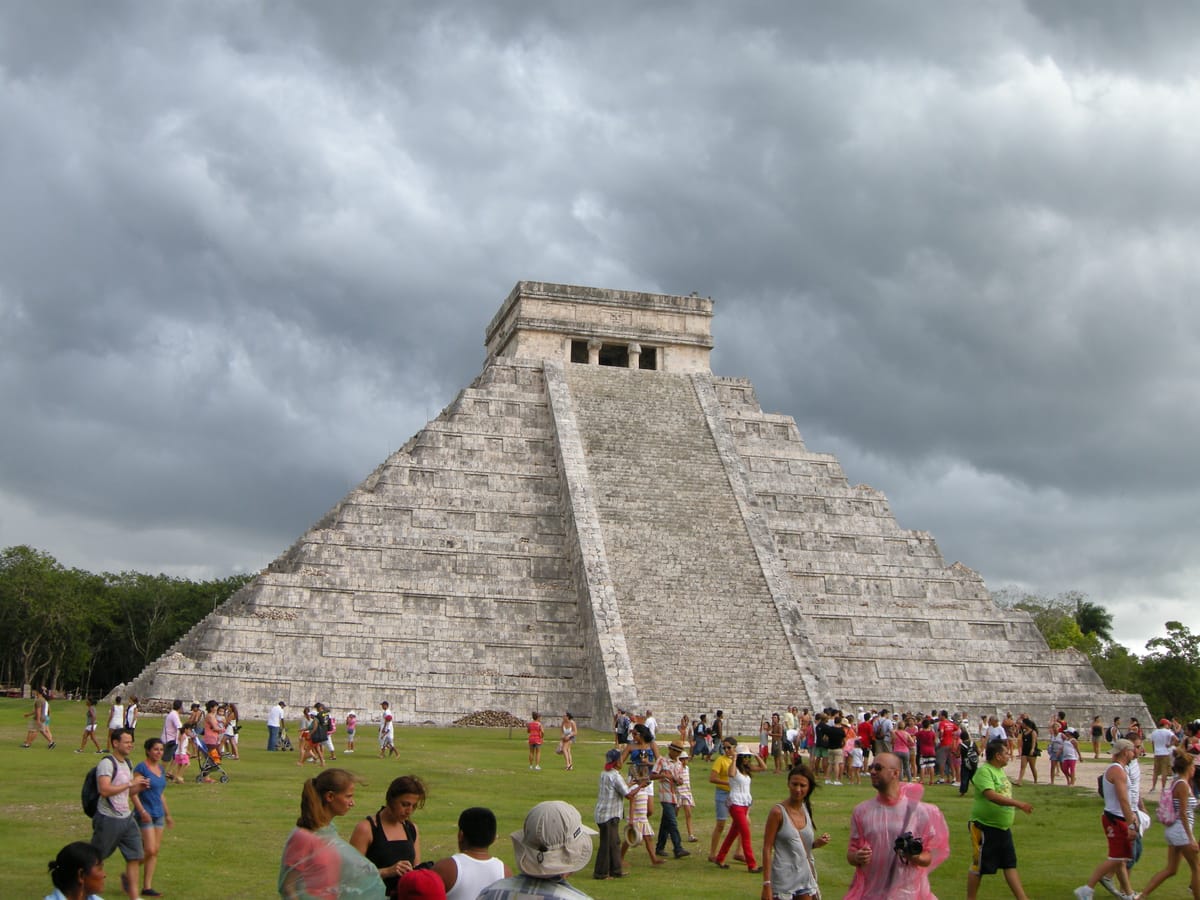

El Castillo sits at the heart of Chichén Itzá’s main plaza, flanked by the Great Ballcourt, the Temple of the Warriors, and the Group of a Thousand Columns. It is a radial pyramid — a design, rare in Mesoamerica, with near-identical stairways and doorways on all four sides rather than a single dominant façade — built up in nine stepped, sloping terraces (a design sometimes read as representing the levels of the Maya underworld) that narrow toward the summit temple. The summit temple itself has doorways on all four sides, opening onto rooms decorated with relief carvings of warriors, jaguars, and feathered serpents. The core is built from local limestone, quarried and dressed with stone tools, and the whole structure was almost certainly finished in painted, and possibly gilded or inlaid, plasterwork that has not survived. Excavations beginning in the 1930s under Mexico’s National Institute of Anthropology and History (INAH) found that the visible pyramid is not solid: a narrow interior stairway leads up through the structure to an earlier, smaller pyramid entombed inside it, complete with a red-painted Jaguar Throne inlaid with jade and shell, and a reclining Chac Mool statue — funerary or ceremonial furniture from an earlier phase of construction that was deliberately buried rather than demolished when the outer pyramid was built over it. Ground-penetrating and, more recently, muon-detection surveys by INAH and university physicists have since suggested that a still older, third structure may lie at the core, and in 2015 researchers reported a natural cenote (sinkhole) sealed beneath the pyramid’s foundations, which may explain why this precise spot was chosen for so central a building.

How Was It Built?

Construction is attributed to the Maya of Chichén Itzá, in an architectural style that archaeologists have long linked to contact with the Toltecs of central Mexico — feathered-serpent imagery, warrior columns, and reclining Chac Mool figures all echo art from Tula, the Toltec capital hundreds of kilometers away. How much of that resemblance reflects Toltec conquest, Toltec migration, shared Mesoamerican religious symbolism, or trade and elite exchange between the two centers remains debated, and radiocarbon dating has complicated the old story further: much of Chichén Itzá’s major construction, including the visible El Castillo, now appears to date mainly to the Terminal Classic period, around 800-1000 CE, overlapping with or even predating the rise of Tula rather than simply following it. Building the pyramid meant quarrying and dressing enormous quantities of limestone by hand, engineering four stairways with matching proportions to within the accuracy needed for the equinox effect described below, and burying an entire earlier pyramid — throne, statue, and all — intact inside new masonry, a sequence recoverable today mainly through the interior stairway tunnel INAH excavated in the 20th century and through non-invasive muon and resistivity surveys since.

The Mainstream View

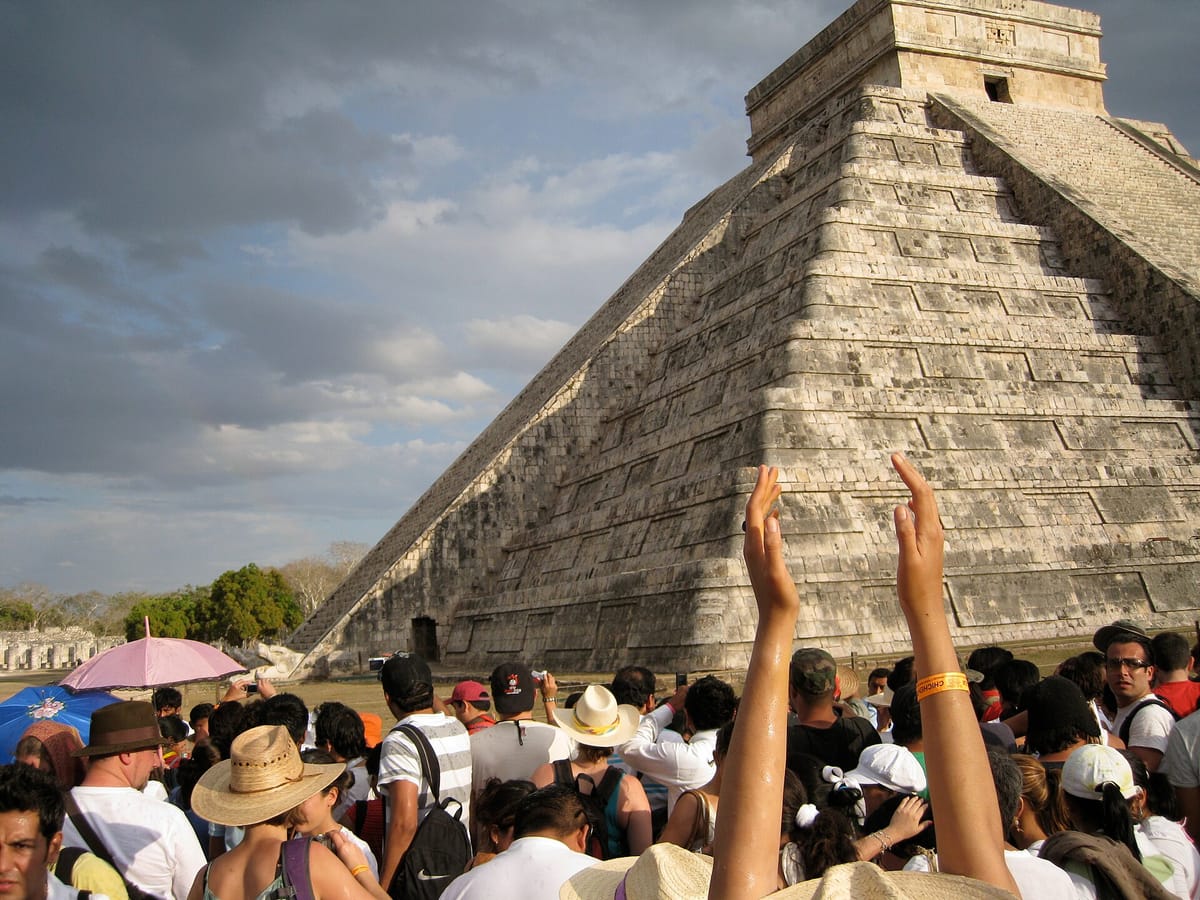

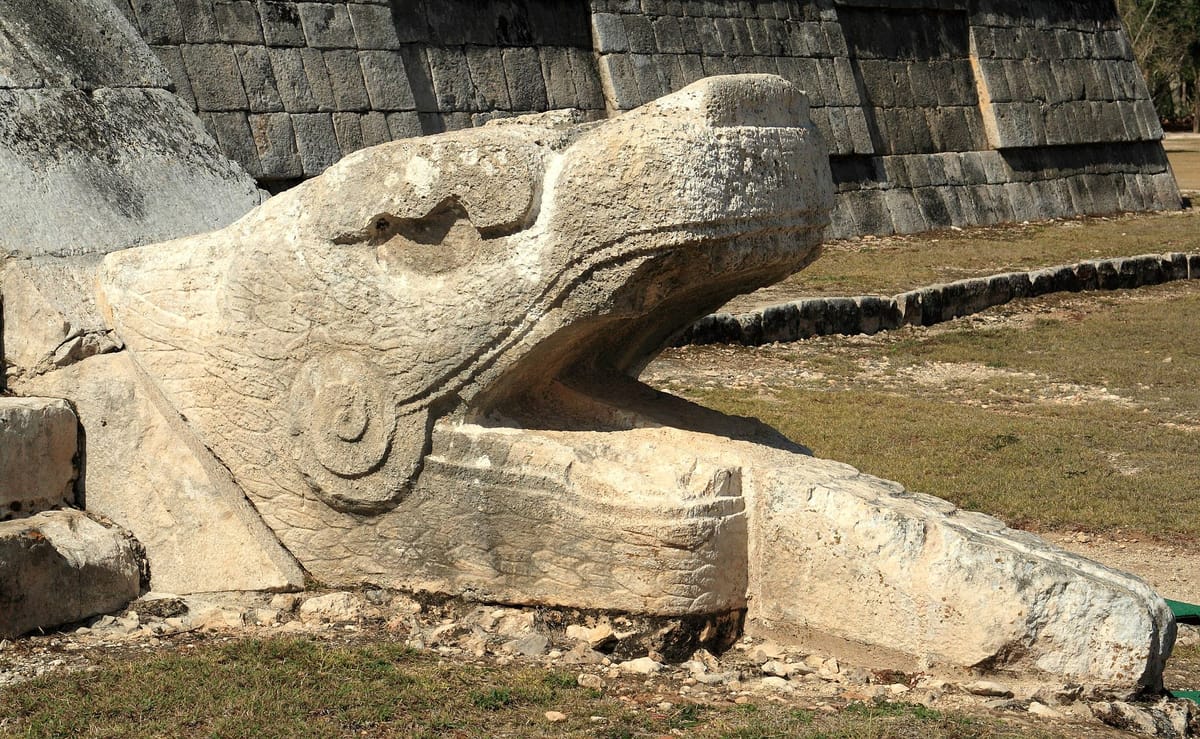

Archaeologists agree that El Castillo is Maya civil-religious architecture built in successive phases, most recently around the 9th and 10th centuries CE, and dedicated to Kukulcán. Its proportions — the 4 × 91 steps plus platform totaling 365, the nine terraces, and the pyramid’s alignment relative to true north — are read as a deliberate encoding of the solar calendar and the cardinal directions into monumental form, consistent with the sophisticated calendrical and astronomical knowledge documented elsewhere in Maya inscriptions and codices. The equinox light-and-shadow effect, in which the late-afternoon sun on the spring and autumn equinoxes casts a stack of triangular sunlit panels down the northwest edge of the pyramid’s staircase — an effect that appears, to observers below, as an undulating serpent of light descending to meet the carved stone serpent heads at the stairway’s base — is treated by most archaeoastronomers, including E. C. Krupp, as a genuine, engineered function of the pyramid’s precise orientation and stepped geometry, not an accident of nature. This is corroborated across independent sources: UNESCO’s World Heritage documentation, Mexico’s INAH, and generations of Mayanist scholarship all describe Chichén Itzá as a major Maya political and ceremonial center whose builders possessed advanced mathematics, a precise 365-day Haab’ calendar, and detailed astronomical observation — capabilities amply documented elsewhere in Maya written and epigraphic records, independent of this one building.

The Open Case

What is still argued over is not whether the Maya could have built El Castillo — they plainly did, using known Maya tools, materials, and mathematics — but exactly how deliberately its finest details were engineered, and how the site’s history actually unfolded. Some archaeoastronomers, including Krupp, describe the equinox serpent-shadow as an intentionally calibrated solar instrument; others, such as Ivan Šprajc and Arturo Sánchez Nava of INAH, have argued in recent academic conferences that the vivid “descending serpent” story is a modern embellishment layered onto a real but more modest shadow effect, and that its precise origins and purpose are less settled than popular accounts suggest. Separately, the dating and cultural relationships behind the pyramid’s construction remain an active research question: successive radiocarbon studies have shifted the Terminal Classic chronology earlier than once assumed, reopening debate over how Chichén Itzá’s Toltec-linked imagery arrived and what it signifies. And the pyramid’s interior is still being investigated — INAH’s ongoing muon-detection project, run with physicists from UNAM and international partners, is searching for further hidden chambers beneath the known Jaguar Throne and Chac Mool rooms, and for confirmation of the buried cenote beneath the foundations. None of this points toward anything beyond Maya engineering, astronomy, and architecture — there is no serious evidence of outside intervention or lost super-technology — but the precise intent behind the equinox alignment, the full sequence of construction phases nested inside one another, and what still lies unexamined at the pyramid’s core remain open questions that current archaeology, including active fieldwork at the site today, is still working to resolve.
